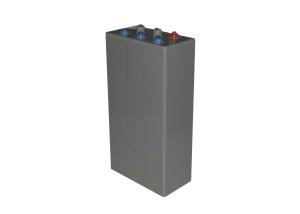

Tubular 2V 2000Ah OPzV Gel Battery For Telecom Outdoor / Wind Energy

Model Number : OPzV2-2000

Certification : CE UL ISO9001 ISO14001

Place of Origin : Wuhan

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T L/C, D/A, D/P

Supply Ability : 10000PCS/30Days

Delivery Time : 30 Days

Packaging Details : Carton and Wooden Pallet

Type : OPzV Gel Battery

Nominal Voltage : 2Volt

Rated Capacity : 2000 Ah

Battery Case : ABS material

Battery Designed Life : More than 20 Years

Approx Weight : 144.6Kg

Terminal Type : Female Copper Insert M8 (torque:10~12N.m)

Application : Telecom Outdoor Applications, Renewable Energy Systems and Other Harsh Environment Applications.

Contact Now

Tubular 2V 2000Ah OPzV Gel Battery For Telecom Outdoor / Wind Energy

OPzV Gel Battery Features

Advanced production equipment and experienced technical personnel.
Completely sealed design & Gas recombination
High cycle life & Maintenance free
Excellent deep cycle performance
Better ability of charge acceptance
Adapt to the wider temperature range

Construction of OPzV Gel Battery

Positive plate :Tubular plate with die cast Pb-Ca alloy grid

Negative plate : Balanced Pb-Ca grid for improved recombination efficiency

Separator : leaf shape polymer separator

Electrolyte : Dilute high purity sulphuric acid with fumed Silica gel

Battery container and cover : ABS

Specifications of OPzV Gel Battery

Nominal Voltage (V)	2
Designed Floating Life (20^oC)	20+ Years
Nominal Capacity (20^oC)	2000 Ah @ C10 (to 1.80Vpc)
Demensions	L399mm×W212mm×H807mm
Approx. Weight	144.6 kg (319 lbs)
Terminal Type	Female Copper Insert M8 (torque:10~12N.m)
Internal Resistance	Approx. 0.24mOhm (fully charged @ 25°C)
Max. Charge Current	400 A
Max. Discharge Current (5S)	3000 A
Short Circuit Current	8300 A
Self Discharge	Approx. 2% per month @ 20°C
Ambient Temperature	Discharge: -40~65°C Charge: -30~65°C Storage: -25~45°C
Float Charge Voltage	2.25 - 2.29V(-3mV / ℃/ cell)
Equalize Charge Voltage	2.35 - 2.40V(-3mV / ℃/ cell)
Container Material	ABS(UL94-V0 optional)

DIMENSIONS

BATTERY DISCHARGE TABLE PARAMETERS FOR SOLAR & WIND APPLICATIONS

CHARACTERISTICS

Application

Telecom outdoor applications, renewable energy systems, other harsh environment applications.

Advantages

1. 20+ years design life at floating condition.

2. Wide operating temperature range from -40C to 60C.

3. Tubular positive plate with prolonged cycle life.

4. Nano Silica gel electrolyte.

5. Lead Calcium die cast grid with improved corrosion resistance capability.

6. Excellent deep discharge recovery capability.
